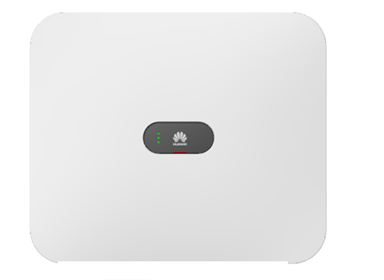

SUN2000-15KTL-M2 Huawei inverter

Name: SUN2000-15KTL-M2 Huawei inverter
Brand: Huawei
SKU: SUN2000-15KTL-M2
Price: 9158.38 RON
Availability: InStock

9.158,38 RON

TAXA de timbru verde ~ 13.20 lei~ este inclusa in pret
.
In limita stocului disponibil
Protectie activa impotriva arcului electric gestionata cu IA
Compatibilitate cu optimizatorul SUN2000-450W-P ceea ce creste eficienta cu până la 30%
Posibilitatea conectarii directe cu un sistem de baterii Plug & Play
Tehnologie de inalta eficienta, eficienta maxima 98,6%

Order

Delivery date: 7 zile

Stock limit

Add to cart

Product Code: SUN2000-15KTL-M2 Do you need help? 0774098070

Add to wishlist

Description
Video (1)
Reviews (0)

Technical specifications

Efficiency

Maximum efficiency	98.65%
Weighted European efficiency	98.30%
Inputs (PV)
Maximum recommended PV power	22.500 Wp
Maximum input voltage	1.080 V
Operating voltage range	160 V ~ 950 V
Starting voltage	200 V
Rated input voltage	600 V
Maximum input current per MPPT	22 A
Maximum short circuit current	30 A
Number of MPP tracking devices	2
Maximum number of entries per MPP tracking device	2
Output
Network connection	Three-phased
Rated output power	15.000 W
Maximum apparent power	16.500 VA
Rated output voltage	220 Vca / 380 Vca, 230 Vca / 400 Vca, 3W / N+PE
Rated AC network frequency	50 Hz / 60 Hz
Maximum output current	25.2 A
Adjustable power factor	0.8 defazaj înainte ... 0.8 defazaj înapoi
Maximum total harmonic distortion	≤ 3 %
Protection and features
Disconnecting device on the input side	yes
Insulation protection	yes
DC reverse polarity protection	yes
Insulation monitoring	yes
DC surge protection	Yes, compatible with protection class TYPE II according to EN / IEC 61643-11
AC surge protection	Yes, compatible with protection class TYPE II according to EN / IEC 61643-1
Residual current monitoring	yes
Overcurrent protection AC	yes
AC short circuit protection	yes
AC surge protection	yes
Electric arc protection	yes
Current variation receiver control	yes
Integrated PID recovery	yes
Reverse mains battery charge	yes
General Data
Operating temperature range	-25 ~ + 60 °C (-13 °F ~ 140 °F)
Relative operating humidity	0 %RH～100 %RH
Operating altitude	0 ～ 4,000 m (13,123 ft.) (Loss over 2000 m)
Cooling Natural convection Display	LED indicators; Integrated WLAN + FusionSolar applicatio
Communication	RS485; WLAN/Ethernet prin Dongle inteligent-WLAN-FE; 4G / 3G / 2G through Dongle inteligent-4G (Optional)
Weight (incl. Mounting bracket)	25 kg (37.5 lb)
Size (incl. Mounting bracket)	525 x 470 x 262 mm (20.7 x 18.5 x 10.3 inch)
Degree of protection	IP65
Energy consumption at night	<5.5W
Optimizer compatibility
MBUS CC compatible optimizer	SUN2000-450W-P
Standard compliance (more available on request)
Certificate	EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Network connection standards	G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA
