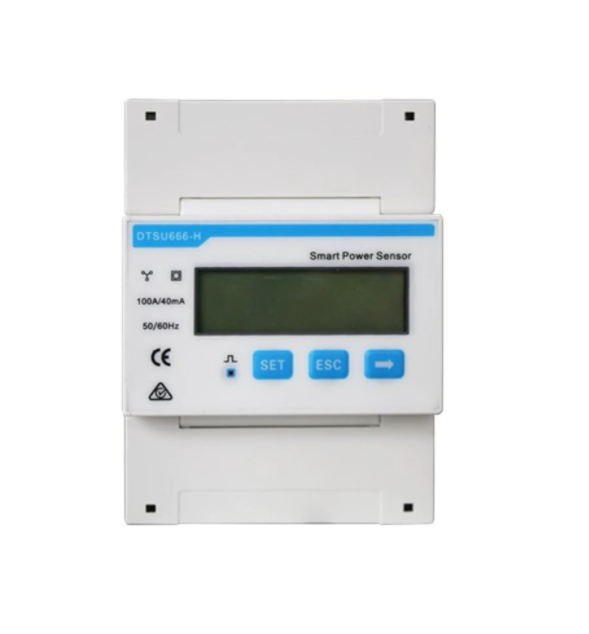

Intelligent power sensor DTSU666-H

The DTSU666-H intelligent power sensor adopts a large-scale integrated circuit with digital sampling technology, specially designed for power monitoring and energy measurement requirements, including for power systems, communications industry, construction industry, mainly applied in measuring and real-time display of parameters such as three-phase voltage, three-phase current, active power, reactive power, frequency, positive and reverse energy, electricity in four quadrants, etc. Adoption of DIN 35mm DIN rail mounting standard, structural module design, characterized by low volume, easy installation and networking, etc. As a terminal monitoring product to the energy management system, it can be widely applied in internal power assessment and monitoring of industrial and mining enterprises, hotels, schools, large public buildings.

• Dimensions                                                              100 x 72 x 65.6 mm
• Weight                                                                      1.5kg
• Type of fastening                                                      DIN35 Rail
• Network type                                                             3P4W
• Interface                                                                    RS485
• Operating temperature range                                  -25 ℃ ~ +60 ℃
